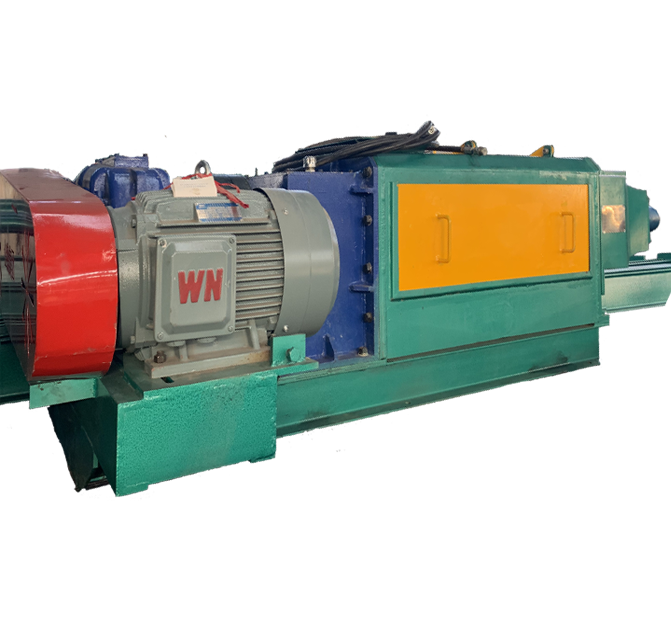

Double screw palm oil press is a typical screw oil press which is widely used in pressing oil from palm fruit. Our double screw palm oil press machine is developed by our engineer, suitable for small sized palm oil mill or professional farms. It is a kind of mini-type screw oil presses covering small area characterized by economical and practical, payback soon, etc. And it was warm welcomed by people of Nigeria, Liberia, Cameroon, Ghana and many areas.
Processing Capacity: 3TPH
Residual Oil Rate: ≤7%
all machine can be customized according to customers' needs.
Double screw palm oil press machines usually used in large, medium and small scale palm oil mill for oil extraction with fresh palm fruits. The most common processing capacity is 3tph, 5tph, 15tph. As for the special processing capacity, we can customize it for you.
The screw oil press is the most mature, stable and best squeezing product on the market. The oil press uses double screws that squeeze each other, so that the material is automatically sucked in, the squeezing is uniform, the bursting pressure is high, and the core crushing rate is low. The crude oil contains less residue and the crude oil is easy to clarify and separate. The discharge port uses a hydraulic cylinder to calibrate the cake. The hydraulic system has an automatic control program to adjust the bursting pressure according to the squeezing effect, so as to achieve a better squeezing effect. The hydraulic calibrating system can be operated manually or automatically.
QIE Group is a professional palm oil mill plant machine manufacturer. We can provide palm oil expeller machine, small scale palm oil mill plant, automatic palm oil mill plant, palm oil refinery machine and fractionation plant, turnkey palm oil processing plant solutions from plant layout design, machinery manufacturing, onsite debugging and installing.
| Processing capacity (FFB) TPH | 3 |
| Number of screws | Twin screw, hydraulic compression |
| Spindle speed (r/min) | 11 |
| Feed temperature ℃ | 90-95 |
| Cake residual oil (%) | ≤7 |
| Palm kernel damage rate (%) | ≤10 |
| Motor power (kw) | 11 |
| Hydraulic pump station motor power (kw) | 1.5 |
| Dimensions (mm) | 3100×1300×790 |
| Weight(kg) | 1800 |
Years of development have brought customers from all over the world. Contact us to start customizing a soybean oil production line for your business.
Our cooking oil production equipment has been exported to more than 120 countries and regions, and many customers have established long-term cooperative relationships with us. Below are some of the oil production equipment and cooking oil production lines we manufacture. Whether you need a single oil production equipment or a complete oil production line, we can customize it for you.
Country : Egypt
Production Output : 300TPD
Raw Materials : Soybean
Country : Egypt
Production Output : 300TPD
Raw Materials : Soybean
Country : Serbia
Production Output : 200TPD
Raw Materials : Soybean
